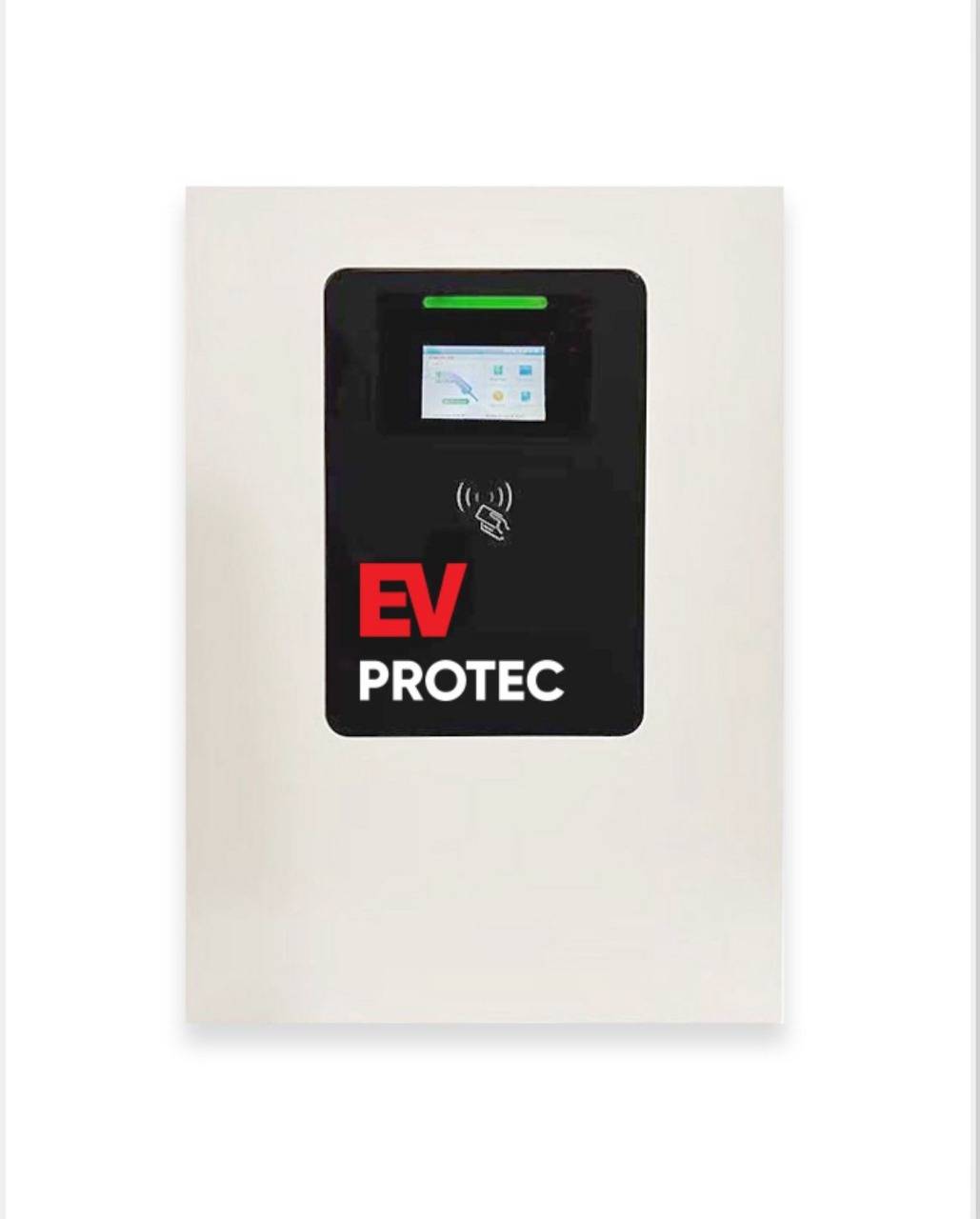

EV Protec DC Charger – 30KW GB/T
The EV Protec DC Charger – 30kW GB/T is a DC fast charging station designed to charge electric vehicles (EVs) quickly using a direct current (DC) connection. This particular model uses the GB/T charging standard, which is commonly found in China.
ITEM | DESCRIPTION | |
INPUT | Voltage range | AC380V±20% |
Working frequency | 45-65HZ | |
The power factor | ≥0.99 | |
Input current | 0-125A | |
Input cable length | Non | |
OUTPUT | Power | 30KW |
Auxiliary power supply | GB/T:12V/24V | |
Voltage range | 750Vdc | |
Output current | GB/T:0-125A | |
Charger mode | Single plug full power/Dual plugs AB equalization | |

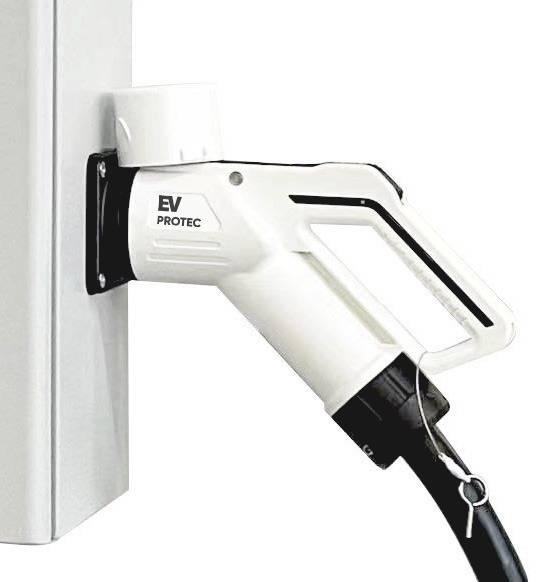

Charger plug | Single plug/ Dual plugs | |
Cable | Default 5 meters (optional) | |
WORKING CONDITIONS | Temperature range | -20~50℃; 25℃(type) |
Humidity range | 5~90RH%:(non-condensation) | |
The altitude | 2000M | |
Location | Indoor/outdoor | |
DIMENSIONS AND PROTECTION | Machine size(mm) | 500 mm x 230 mm x 700 mm |
Packing size(mm) | 550 mm x 280 mm x 750 mm | |
Packing/weight | About 50KG | |
IP | IP54 | |
START MODE | Plug and play/Swipe start/Input password start/VIN code |
