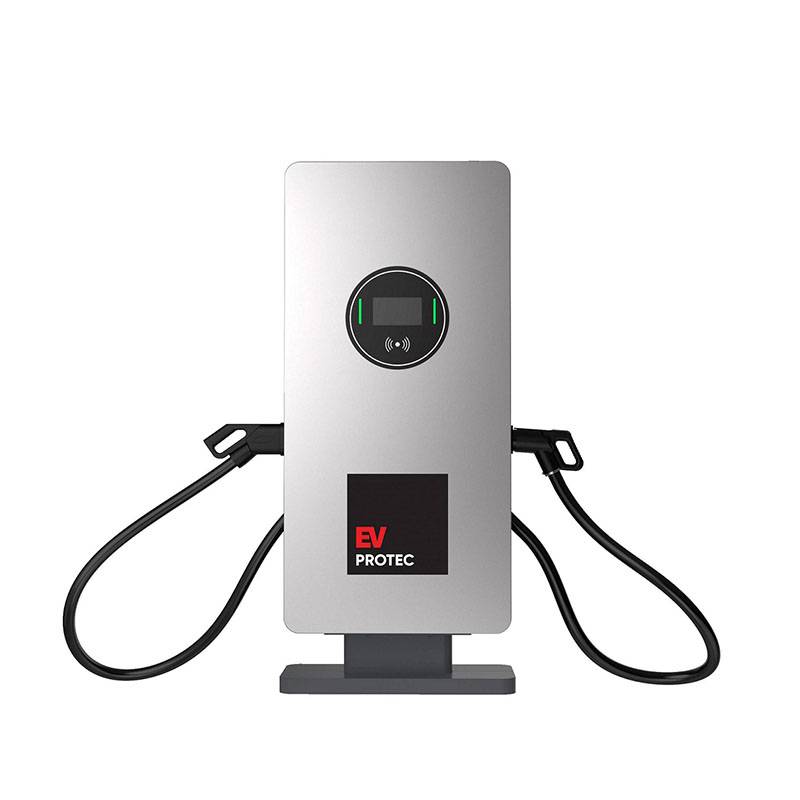

EV Protec DC Charger – 60KW- GB/T- CCS2
| ITEM | DESCRIPTION | |
| INPUT | Input Voltage | AC400V±10%,3P+N+PE |
| Working frequency | 45-65HZ | |
| The power factor | ≥0.99 | |
| Input current | 0-125A | |
| Input cable length | Non | |
| OUTPUT | Power | 60KW |
| Voltage | DC 200-1000V | |
| Output Current | CCS2:MAX200/250A , GBT:MAX 200/250A | |
| Connector Type | CCS2 | |
| Gun Line Length | Car: 4.5m , Bus: 6.5m(optional) | |
| Charger plug | Single plug/ Dual plugs | |
| Efficiency | ≥95% | |
| WORKING CONDITIONS | Temperature range | -40~55℃ |
| Humidity range | 5~95RH%:（non-condensation） | |
| The altitude | 2000M | |
| Location | Indoor/outdoor | |
| MECHANICAL SPECIFICATION | User Interface | LED+7”LCD Screen |
| Communication Interface | Ethernet/4G(Optional)/WIFI(Optional) | |
| Packing/weight | About 185KG | |
| IP | IP55 | |
| START MODE | App/RFID(Optional) | |
| PROTECTION FUNCTION | Scram ; Input over/under voltage ; Output overvoltage ; Overtemperature ; Overcurrent
; Short circuit ; Leakage ; Lightning ; Battery reverse; Insulation monitoring ; |
| LANGUAGE | Default English, other languages can be customized |
| INSTALLATION | Wall-mounted/ Stand- mounted |
| CHARGER STANDARD | CCS2 |
| MANUFACTURED BY | NIZINE LLC – USA | UK | UAE | SG | HK |
| BRAND | EV PROTEC – UK |
