The Type 2 connector is utilized for charging electric vehicles, as it was proclaimed norm by the EU. In light of boundless red IEC 60309 three stage plugs with five pins, which come in various widths as per greatest current (most normal are 16 An and 32 A), a solitary size was chosen, as greatest conceivable power will be imparted to the vehicle by means of two extra correspondence pins and by a basic resistor coding inside the link. The locally available charger inside the vehicle needs to in like manner limit the current.

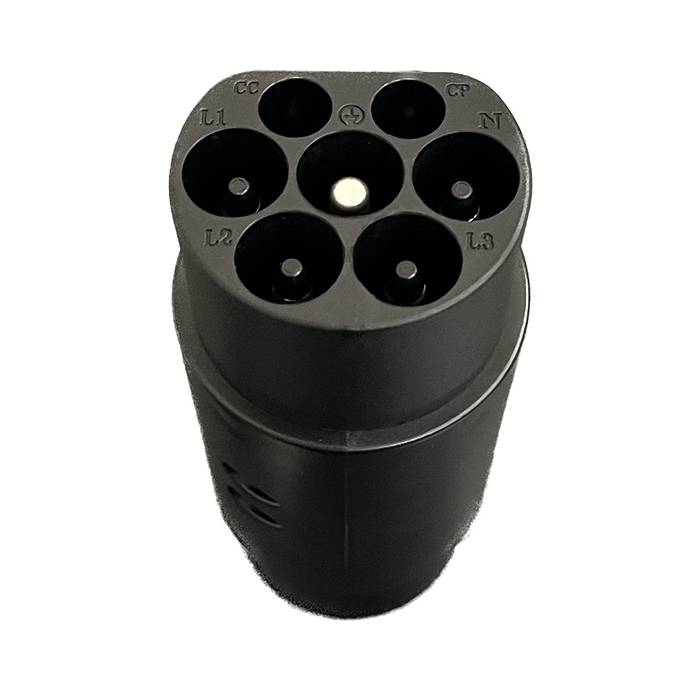

The connector is circular in shape, with a smoothed top edge; the first plan particular conveyed a result electric force of 3-50 kilowatts for charging battery electric vehicles utilizing single-stage (230V) or three-stage (400V) rotating flow (AC), with a common limit of 32 A 7.2 kW utilizing single-stage AC. The fittings have openings on the sides that permit both the vehicle and the charger to lock the attachment naturally to forestall undesirable interference of charging, or theft of the cable
Features:
* Complies with IEC 62196 standard.
* The pin head is designed with safety insulation to prevent accidental direct contact with human hands.
* Superior protection performance.
