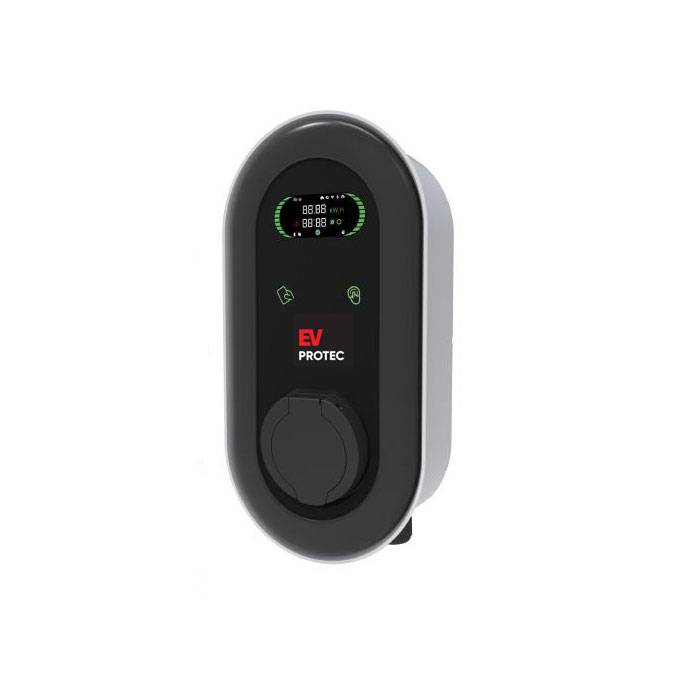

PRODUCT INFORMATION
Upgrade model of AE-A-G. Not only smart APP control, we also offer DLB and solar compatible functions. We hope these 2 useful functions can help users charge cars at home much safer, greener and more effective.
APPLICATION Home | commercial | Apartments
SPECIFICATION TABLE
| SPECIFICATION | VALUE |
| Products dimension | 390*205*115mm |
| Phases / Lines | 1/3-phase |
| Type 2 charging plug and Cable Length | 3.5m cable |
| Effective charging rate | 7/11/22kW |
| Ingress Protection | IP55 |
| Mechanical protection | IK10 |
| Input /Output voltage | AC 220/400V |
| Input frequency | 50/60Hz |
| Max. output power | 7KW(1-Phase),11/22KW(3-phase) |
| Max. output current | 16/32A |
| Charging interface type | IEC 62196-2 |
| Over voltage protection | YES |
| Under voltage protection | YES |
| Overload protection | YES |
| Short circuit protection | YES |
| Earth leakage protection | YES |
| Over-temp protection | YES |
| Lightning protection | YES |
| WIFI/Bluetooth/APP | YES |
| LCD Display | YES |
| RCD | Type A+DC 6mA |
| LED Indicator light | YES |
| RFID | YES |
| DLB | YES |
| BRAND | EV Protec |
