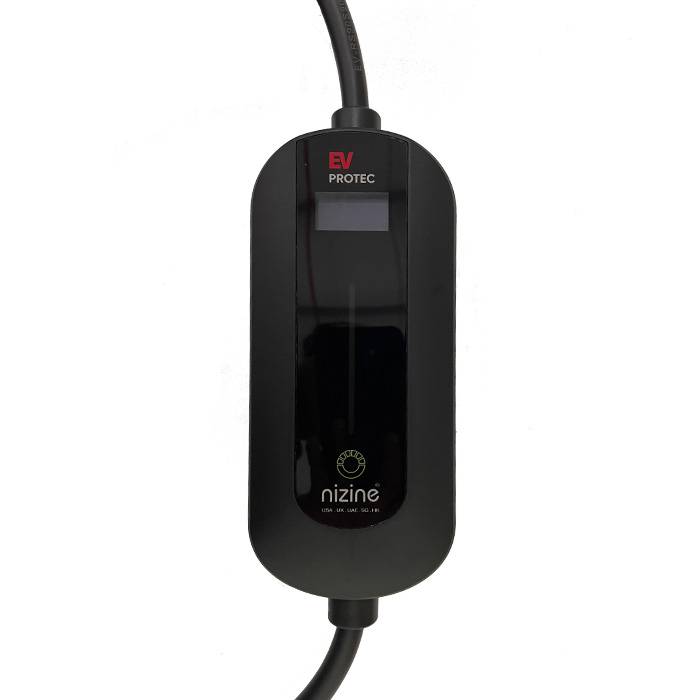

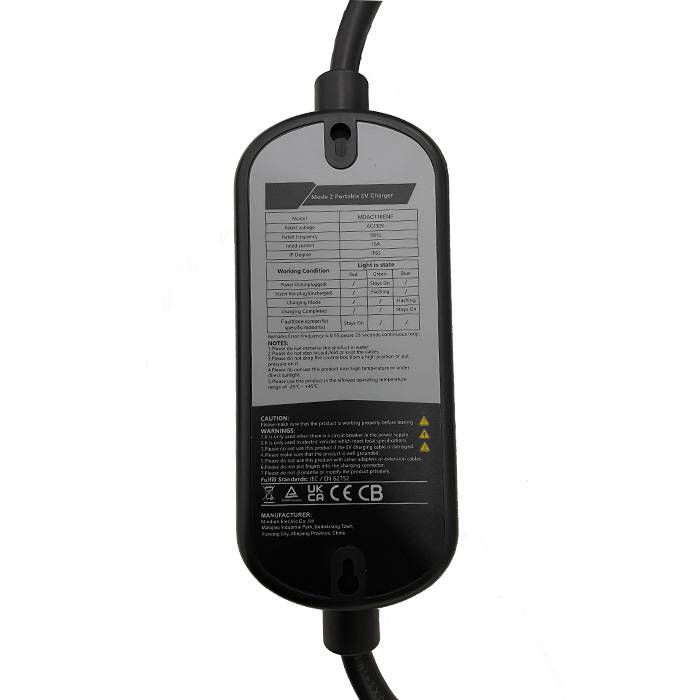

EV Protec GB/T Portable EV Charger With Adjustable Current: 8/10/13/16A

AED 1,200.00

Price Summary

Maximum Retail Price
(incl. of all taxes) AED 1,200.00
Selling Price AED 1,200.00
Total AED 1,200.00

Out of Stock

AED

OMR

SKU: PCHRG-GB16A-2309 Categories: CHARGER, EV CHARGING Tags: ID4 Portable charger, Portable charger, Portable EV charger

Description

EV Protec portable charger is industrial socket version.
It can charge all EV manufactured in china, And convert to the applicable point current correctly and effectively with high compatibility.
Mode: MDAC116ENF
Rated Voltage: AC230V
Rated Frequency: 50Hz
Rated Current: 8/10/13/16A
IP Ratings: IP65
HS Code: 8504401500

Data Sheet

GBT Portable Charger - 16A

Download

Additional information

Weight	5 kg

Reviews (0)

0 ★

0 Ratings

5 ★

4 ★

3 ★

2 ★

1 ★

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Scroll To Top

My Cart

Shopping cart is empty!

Continue Shopping

ITEM		DESCRIPTION
INPUT	Voltage range	AC400V±10% ,3
	Working frequency	45-65HZ
	The power factor	≥0.99
	Input current	0-400A
	Input cable length	NA (as per site requirements)
OUTPUT	Power	240KW
	Auxiliary power supply	GB/T:12V/24V
	Voltage range	200-750V DC 150-1000
	Output current	GB/T:0-250A
	Charger mode	Single plug full power/Dual plugs AB equalization
	Charger plug	Single plug/ Dual plugs
	Cable	Default 6 meters
WORKINGCONDITIONS	Temperature range	-40~50℃
	Humidity range	5~90RH%；（non-condensation）
	The altitude	2000M
	Temperature range	Indoor/outdoor
DIMENSIONS ANDPROTECTION	Machine size(mm)	800 x 750 x 1900 mm
	Weight	398 Kg
	IP	IP55

ITEM		DESCRIPTION
INPUT	Input Voltage	AC400V±10%,3P+N+PE
	Working frequency	45-65HZ
	The power factor	≥0.99
	Input current	0-125A
	Input cable length	Non
OUTPUT	Power	60KW
	Voltage	DC 200-1000V
	Output Current	CCS2:MAX200/250A , GBT:MAX 200/250A
	Connector Type	GBT
	Gun Line Length	Car: 4.5m , Bus: 6.5m(optional)
	Charger plug	Single plug/ Dual plugs
	Efficiency	≥95%
WORKING CONDITIONS	Temperature range	-40~55℃
	Humidity range	5~95RH%:（non-condensation）
	The altitude	2000M
	Location	Indoor/outdoor
MECHANICAL SPECIFICATION	User Interface	LED+7”LCD Screen
	Communication Interface	Ethernet/4G(Optional)/WIFI(Optional)
	Packing/weight	About 185KG
	IP	IP55
START MODE		App/RFID(Optional)

PROTECTION FUNCTION	Scram ; Input over/under voltage ; Output overvoltage ; Overtemperature ; Overcurrent ; Short circuit ; Leakage ; Lightning ; Battery reverse; Insulation monitoring ;
LANGUAGE	Default English, other languages can be customized
INSTALLATION	Wall-mounted/ Stand- mounted Cable requirement 3x35mm 3p and 2x16mm (N&E)
CHARGER STANDARD	GB/T
MANUFACTURED BY	NIZINE LLC – USA \| UK \| UAE \| SG \| HK
BRAND	EV PROTEC – UK

PECIFICATION	VALUE	UNIT
Rated Power	200	kW
Rated Voltage	1000 (MAX)	V
IP Rating	65	IP
Operating Temperature	-30~+50	°C
Current	200	A
Item Dimension	( L* W* H) 290.5 * 42.5 * 147.26	mm
Weight	2.5	kg
BRAND	EV PROTEC

SPECIFICATION	VALUE	UNIT
Rated Voltage	100-500	VDC
IP Rating	55	IP
Operating Temperature	-30~+50	°C
Current	125	A
Weight	2.5	kg
BRAND	EV PROTEC
