EV PROTEC Portable Charger – 8/10/13/16/20/24/32A

AED 1,620.00

Price Summary

Maximum Retail Price
(incl. of all taxes) AED 1,620.00
Selling Price AED 1,620.00
Total AED 1,620.00

In Stock

AED

OMR

SKU: PCHRG-GB32A-2401 Categories: AC, CHARGER, EV CHARGING

Description

OVERVIEW

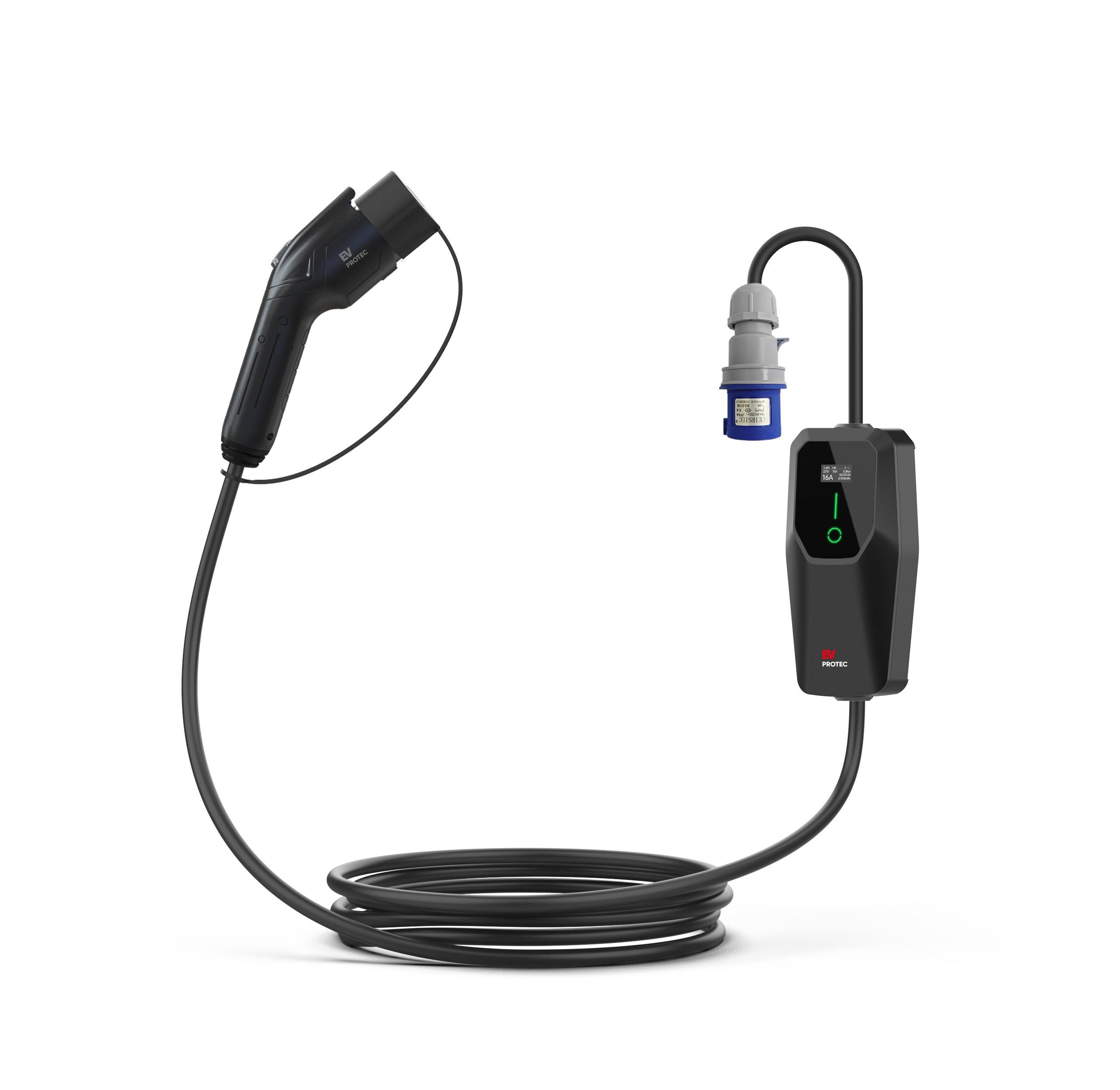

Portable EV charger is a household charging device for electric vehicles. The product meets the requirements of the GB/T 18487 Mode 2 AC charging system. One end is an AC charging connector that meets GB/T20234, the middle is a control box on the cables, and the other end is a power plug.

ELECTRICAL PROPERTIES

Article	Specification
Rated Voltage	240V AC/250V AC/480V AC
Operating Voltage	240V/250V/480V
Rated frequency	50-60HZ
Rated current	8A/10A/13A/16A/20A/24A/32A
Control Pilot	GB/T 18487
	Duty Ratio	26.67%/53.3%
	Frequency	1000Hz
Leakage Protection	AC leakage	20/30mA
Insulation Resistance	＞10MΩ

Data Sheet

EV PROTEC Portable Charger - 8/10/13/16/20/24/32A

Download

Reviews (0)

0 ★

0 Ratings

5 ★

4 ★

3 ★

2 ★

1 ★

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

ITEM		DESCRIPTION
INPUT	Input Voltage	AC400V±10%,3P+N+PE
	Working frequency	45-65HZ
	The power factor	≥0.99
	Input current	0-125A
	Input cable length	Non
OUTPUT	Power	60KW
	Voltage	DC 200-1000V
	Output Current	CCS2:MAX200/250A , GBT:MAX 200/250A
	Connector Type	GBT
	Gun Line Length	Car: 4.5m , Bus: 6.5m(optional)
	Charger plug	Single plug/ Dual plugs
	Efficiency	≥95%
WORKING CONDITIONS	Temperature range	-40~55℃
	Humidity range	5~95RH%:（non-condensation）
	The altitude	2000M
	Location	Indoor/outdoor
MECHANICAL SPECIFICATION	User Interface	LED+7”LCD Screen
	Communication Interface	Ethernet/4G(Optional)/WIFI(Optional)
	Packing/weight	About 185KG
	IP	IP55
START MODE		App/RFID(Optional)

PROTECTION FUNCTION	Scram ; Input over/under voltage ; Output overvoltage ; Overtemperature ; Overcurrent ; Short circuit ; Leakage ; Lightning ; Battery reverse; Insulation monitoring ;
LANGUAGE	Default English, other languages can be customized
INSTALLATION	Wall-mounted/ Stand- mounted Cable requirement 3x35mm 3p and 2x16mm (N&E)
CHARGER STANDARD	GB/T
MANUFACTURED BY	NIZINE LLC – USA \| UK \| UAE \| SG \| HK
BRAND	EV PROTEC – UK

DESCRIPTION	VALUE
Input Voltage	220V
Application	AC Home Charging
Rated Current	32A
Cable length	6 Meters
Rated Output Power	7KW
Charging Gun	GB/T
Protection	IP55
Working environment Temperature	-30°C~+50°C
Storage Environment Temperature	-40°C~+85°C
Relative Humidity	5%~95%
Overall Dimensions	406MM* 297MM* 116MM
Warranty	01 Year
Brand	VW

ITEM		DESCRIPTION
INPUT	Voltage range	AC380V±20%
	Working frequency	45-65HZ
	The power factor	≥0.99
	Input current	0-125A
	Input cable length	Non
OUTPUT	Power	30KW
	Auxiliary power supply	GB/T:12V/24V
	Voltage range	750Vdc
	Output current	CCS2 :0-125A
	Charger mode	Single plug full power/Dual plugs AB equalization
	Charger plug	Single plug/ Dual plugs
	Cable	Default 5 meters (optional)
WORKING CONDITIONS	Temperature range	-20~50℃; 25℃（type)
	Humidity range	5~90RH%:（non-condensation）
	The altitude	2000M
	Location	Indoor/outdoor
DIMENSIONS AND PROTECTION	Machine size(mm)	500 mm x 230 mm x 700 mm
	Packing size(mm)	550 mm x 280 mm x 750 mm
	Packing/weight	About 50KG
	IP	IP54
START MODE		Plug and play/Swipe start/Input password start/VIN code
PROTECTION FUNCTION		Scram ; Input over/under voltage ; Output overvoltage ; Overtemperature ; Overcurrent ; Short circuit ; Leakage ; Lightning ; Battery reverse; Insulation monitoring ;
DISPLAY SCREEN		7 inch color Touch screen
LANGUAGE		Default English, other languages can be customized
CHARGING MODE		Plug and play \| OCPP 1.6 (OPTIONAL)
NETWORK MODE		4G/WIFI/Ethernet / Infrared Supported (OPTIONAL)
INSTALLATION		Wall-mounted/ Stand- mounted
CHARGER STANDARD		GB/T 20234.3 \| OTHER STANDARDS (OPTIONAL)
MANUFACTURED BY		NIZINE LLC – USA \| UK \| UAE \| SG \| HK
BRAND		EV PROTEC – UK
