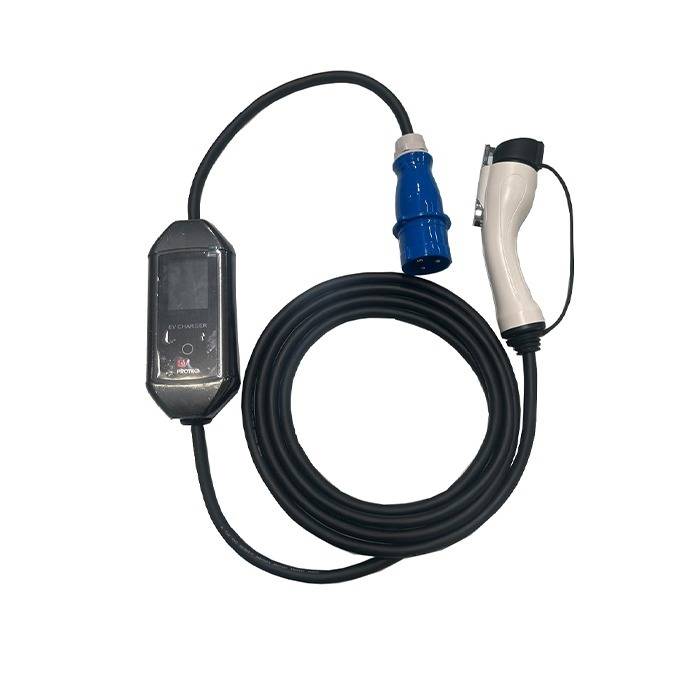

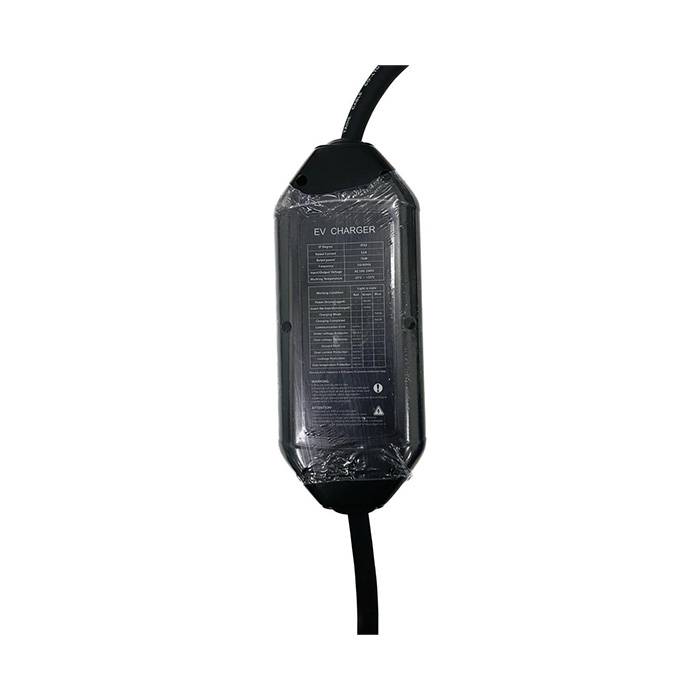

Name: Portable Charger Type 1 - 32A - 7kW
SKU: VID710
Price: 2040.00 AED
Availability: InStock

Portable Charger Type 1 – 32A – 7kW

AED 2,040.00

Price Summary

Maximum Retail Price
(incl. of all taxes) AED 2,040.00
Selling Price AED 2,040.00
Total AED 2,040.00

In Stock

Description

It can charge all EV cars which have Type 1 charging portal, And convert to the applicable point current correctly and effectively with high compatibility.
Input/output Voltage: AC100-240V
Rated Frequency: 50/60Hz
Rated Current: 32A
IP Ratings: IP65
Working Temperature: -25°C~+55°C

Data Sheet

Type 1 Portable Charger-32A

Download

Additional information

Weight	5 kg

Reviews (0)

0 ★

0 Ratings

5 ★

4 ★

3 ★

2 ★

1 ★

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

ITEM		DESCRIPTION
INPUT	Voltage range	AC400V±10% ,3
	Working frequency	45-65HZ
	The power factor	≥0.99
	Input current	0-400A
	Input cable length	NA (as per site requirements)
OUTPUT	Power	240KW
	Auxiliary power supply	GB/T:12V/24V
	Voltage range	200-750V DC 150-1000
	Output current	GB/T:0-250A
	Charger mode	Single plug full power/Dual plugs AB equalization
	Charger plug	Single plug/ Dual plugs
	Cable	Default 6 meters
WORKINGCONDITIONS	Temperature range	-40~50℃
	Humidity range	5~90RH%；（non-condensation）
	The altitude	2000M
	Temperature range	Indoor/outdoor
DIMENSIONS ANDPROTECTION	Machine size(mm)	800 x 750 x 1900 mm
	Weight	398 Kg
	IP	IP55

SPECIFICATION	VALUE	UNIT
Rated Voltage	100-500	VDC
IP Rating	55	IP
Operating Temperature	-30~+50	°C
Current	125	A
Weight	2.5	kg
BRAND	EV PROTEC

DESCRIPTION	VALUE
Input Voltage	230V
Application	AC Home Charging
Rated Current	32A
Cable length	7.3 Meters
Rated Output Power	22KW
Charging Gun	GB/T
Protection	IP55
Installation	Indoor/ Outdoor
Power Management	Automatic load management
Compatibility	Modal S, Modal 3, Modal Y, Modal X
Overall Dimensions	345MM* 155MM* 110MM
Warranty	01 Year
Brand	TESLA

DESCRIPTION	VALUE
Input Voltage	220V
Application	AC Home Charging
Rated Current	32A
Cable length	6 Meters
Rated Output Power	7KW
Charging Gun	GB/T
Protection	IP55
Working environment Temperature	-30°C~+50°C
Storage Environment Temperature	-40°C~+85°C
Relative Humidity	5%~95%
Overall Dimensions	406MM* 297MM* 116MM
Warranty	01 Year
Brand	VW

DESCRIPTION	VALUE
Output Current	AC
Output Power	7kW
Input Voltage	200 – 220v
Application	AC Home Charging
Rated Current	16A / 32A
Cable length	5 Meters
Rated Output Power	3.5KW 7KW
Charging Gun	GB/T
Protection	IP65
Transport Package	Standard Export Carton Box
Warranty	01 Year
Brand	BYD
